产品介绍
详细信息
品牌：恒海

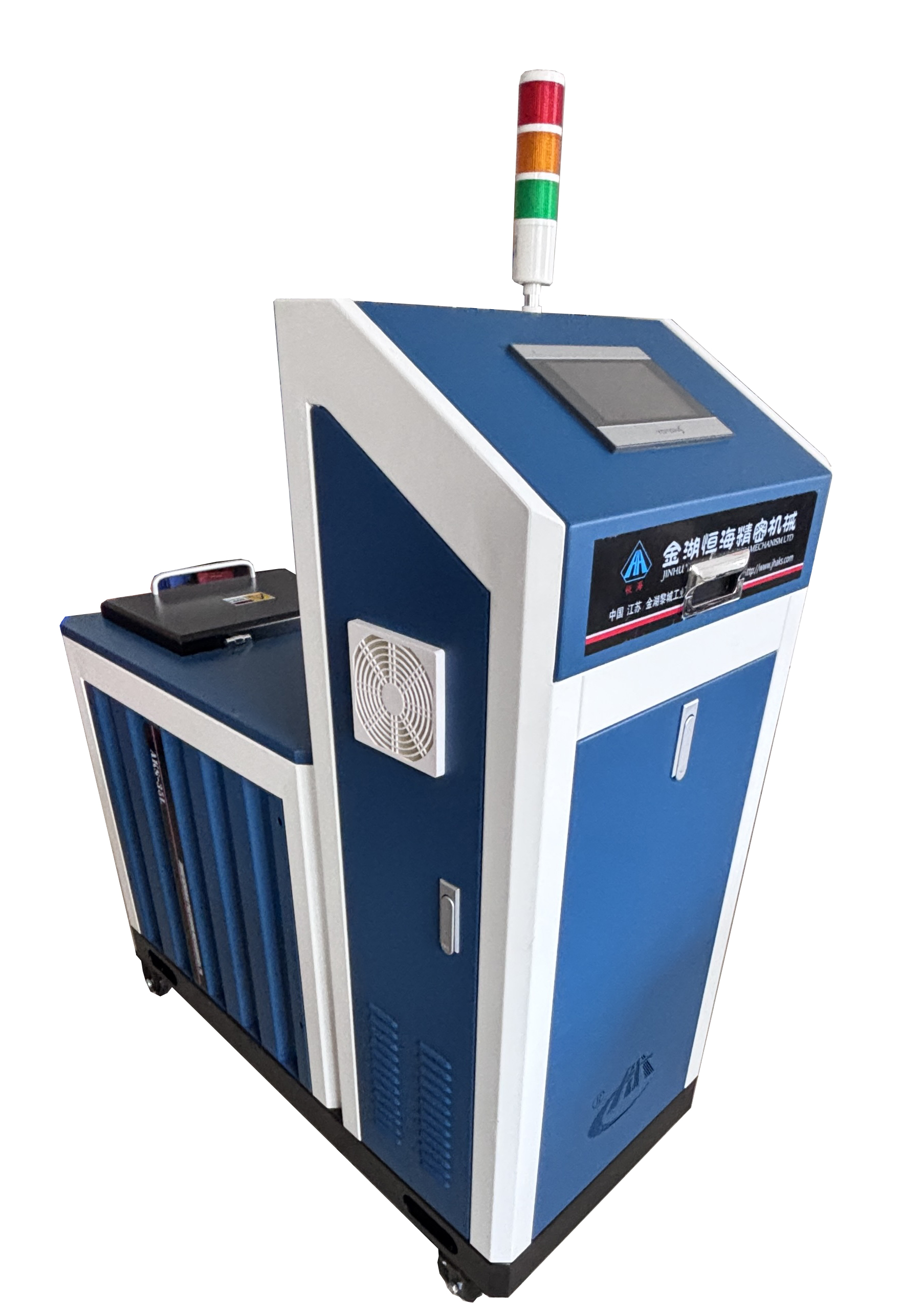

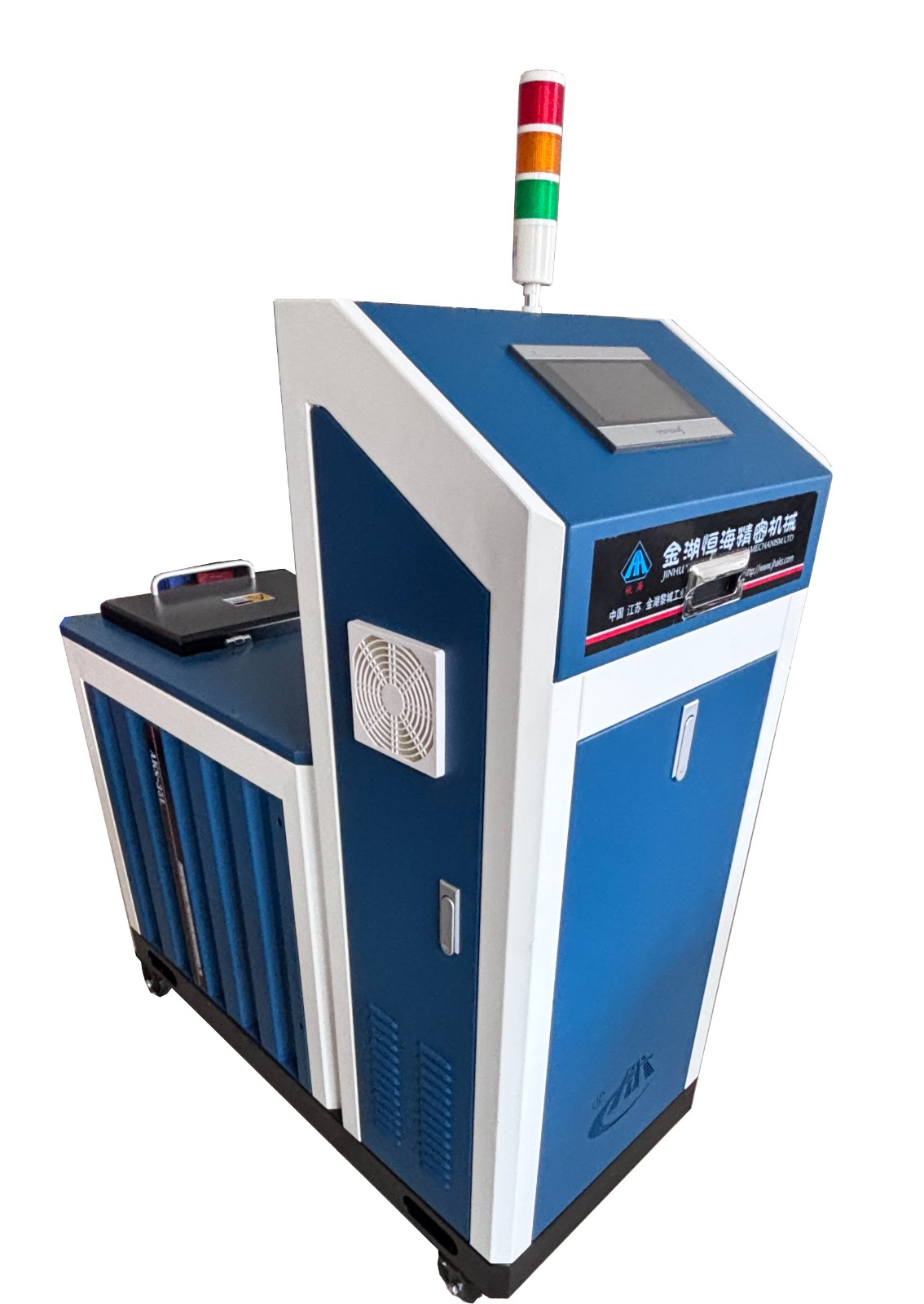

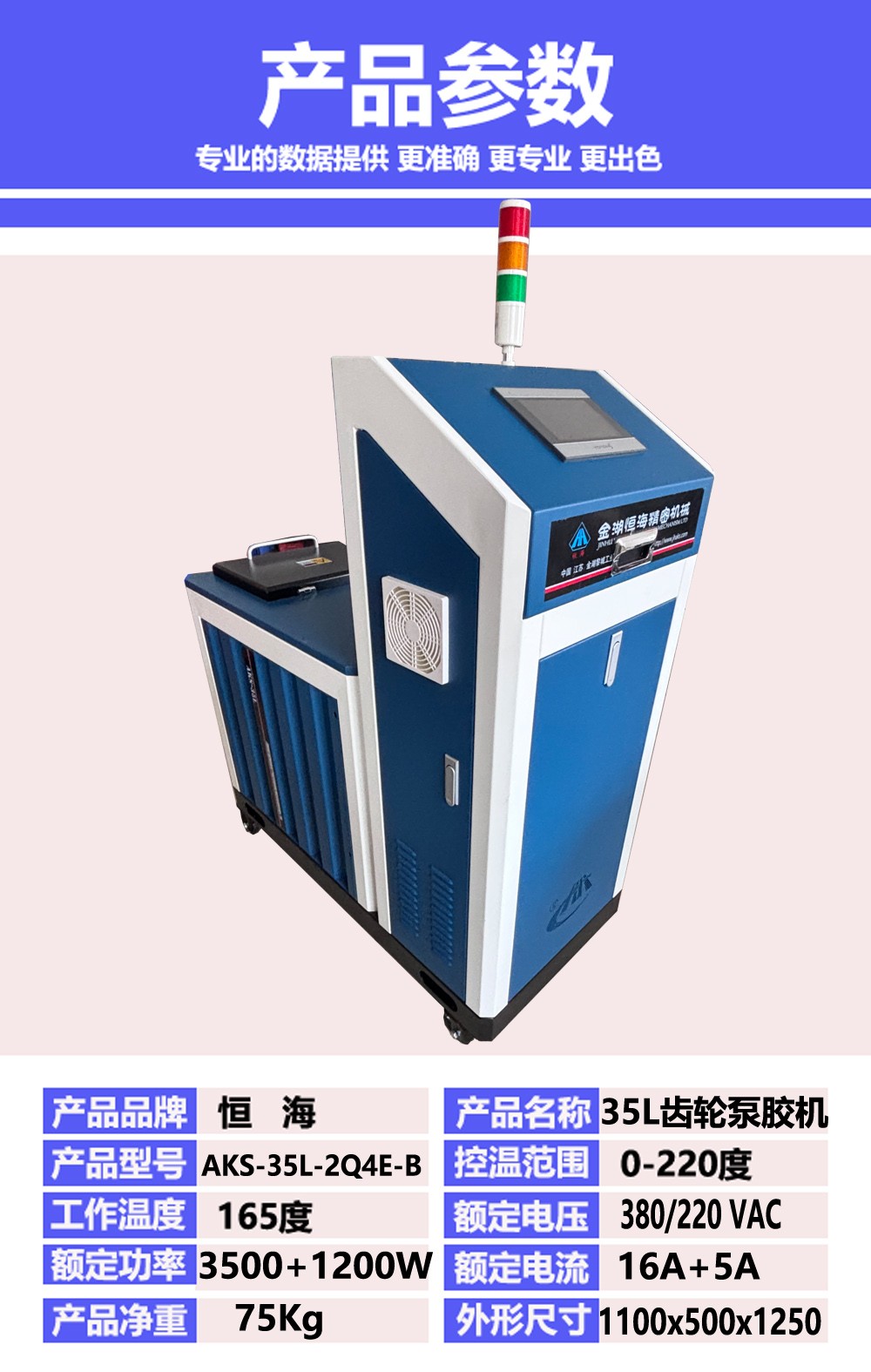

名称：35Kg热熔胶机
型号：AKS-35-2P4E-B
温度控制范围：0-200℃
工作温度：165℃
额定功率：3500W+1200W
额定电压：380VAC
额定电流：15.9A+5.5A
整机重量：75.8Kg
外型尺寸：950x510x1150（长x宽x高）
详细描述
1.恒海热熔胶机采用预熔式加热熔缸，“特氟龙”涂层，减少碳化物产生。
2.恒海热熔胶机采用槽式自扣外壳，易于折装维修，达国际设计安全标准。
3.熔胶量高达35kg/hr，功率：3500W+1200W
4.触摸屏温控系统配合精确PT100铂金/K型感温器，减少热熔胶变质及维修保养。自动全过程监测各区域温度，发现某区域超温时立即输出声光报警信号同时屏幕显示故障点。各区域设置有独立开关控制，跟据需要选择打开要打开的加温区域。
5.配备2组耐用单/双层齿轮泵，精准输胶量.
6.配备2组回流阀及6组超温保护回路以最大限度保障安全。
7.耐用单/双层齿轮泵，精准输出胶量，精确计量式齿轮泵每转精准输出0.75---15cc可供选配。
注意事项
1. 热熔胶机，热熔胶枪都是高温高压设备，注意防烫；
2. 热熔胶喷枪温度就绪后，才可以启动设备；
3. 热熔胶喷枪在安装过程中要关闭电源后操作；
4. 安装辅助设备如热熔胶枪、热熔胶管时要泄压、排压后才可安装；
5. 定期清理热熔胶枪和热熔胶机表面的粉尘，防止静电打火；
6. 定期检查是否有热熔胶枪和热熔胶机漏胶、漏电情况。
应用范围
恒海热熔胶机、热熔胶枪被广泛应用在：纸品包装、封盒封箱、汽车制造、电子电器封装、商标标贴、材料复合、妇幼卫生用品、医用床垫等领域。
购买需知
1.关于产品
我们接受用户特殊型号的定制服务，从生产到交付使用全程跟踪，确保设备安全稳定。
2.关于售后
我们将提供完善的售后服务，从制造，发货，安装，调试到交付用户投入使用一条龙服务。
3.关于发货
我们合作的快递公司有：申通，圆通，顺丰，以及物流公司。
更多详情请访问恒海精密机械官网：
detailed information
Brand: Henghai
Name: 35kg hot melt adhesive machine
Model: aks-35-2p4e-b
Temperature control range: 0-200 ℃
Operating temperature: 165 ℃
Rated power: 3500W + 1200W
Rated voltage: 380VAC
Rated current: 15.9a + 5.5A
Overall weight: 75.8kg
Overall dimension: 950x510x1150 (L x W x H)
Detailed description
1. Pre melting type heating melting cylinder, "TEFLON" coating to reduce carbide generation.
2. The grooved self buckle shell is easy to fold and repair, and meets the international design safety standards.
3. Glue amount up to 35kg / HR, power: 3500W + 1200W
4. The touch screen temperature control system cooperates with precise PT100 platinum / K-type temperature sensor to reduce the deterioration and maintenance of hot melt adhesive. Automatically monitor the temperature of each area in the whole process. When an area is over temperature, it will immediately output an audible and visual alarm signal, and the fault point will be displayed on the screen. Each area is equipped with independent switch control to select the heating area to be opened according to the needs.
5. Equipped with 2 sets of durable single / double-layer gear pumps, accurate glue delivery
6. Two groups of return valves and six groups of over temperature protection circuits are equipped to ensure safety to the greatest extent.
7. Durable single / double-layer gear pump, accurate glue output, accurate metering gear pump, accurate output of 0.75-15cc per revolution, optional.
matters needing attention
1. For high temperature and high pressure equipment, pay attention to prevent scalding and electric shock;
2. The equipment can be started only after the temperature is ready;
3. Cut off power during installation;
4. When installing auxiliary equipment such as guns and pipes, the pressure shall be relieved and discharged before installation;
5. Clean the dust regularly to prevent static ignition;
6. Regularly check whether there is glue leakage and electric leakage.
Scope of application
Application fields: paper packaging, box sealing, automobile manufacturing, electronic and electrical packaging, trademark labeling, composite materials, maternal and child health products, medical mattresses, etc
Purchase need to know
1. About products
We accept the customized service of special models of users and track the whole process from production to delivery to ensure the safety and stability of the equipment.
2. About after sales
We will provide perfect after-sales service, from manufacturing, delivery, installation, commissioning to delivery to users.
3. About delivery
The express companies we cooperate with are: Shentong, Yuantong, Shunfeng, and logistics companies.
For more details, please visit the official website of Henghai precision machinery:
http://www.hhaks.com
