详细信息

品牌：恒海

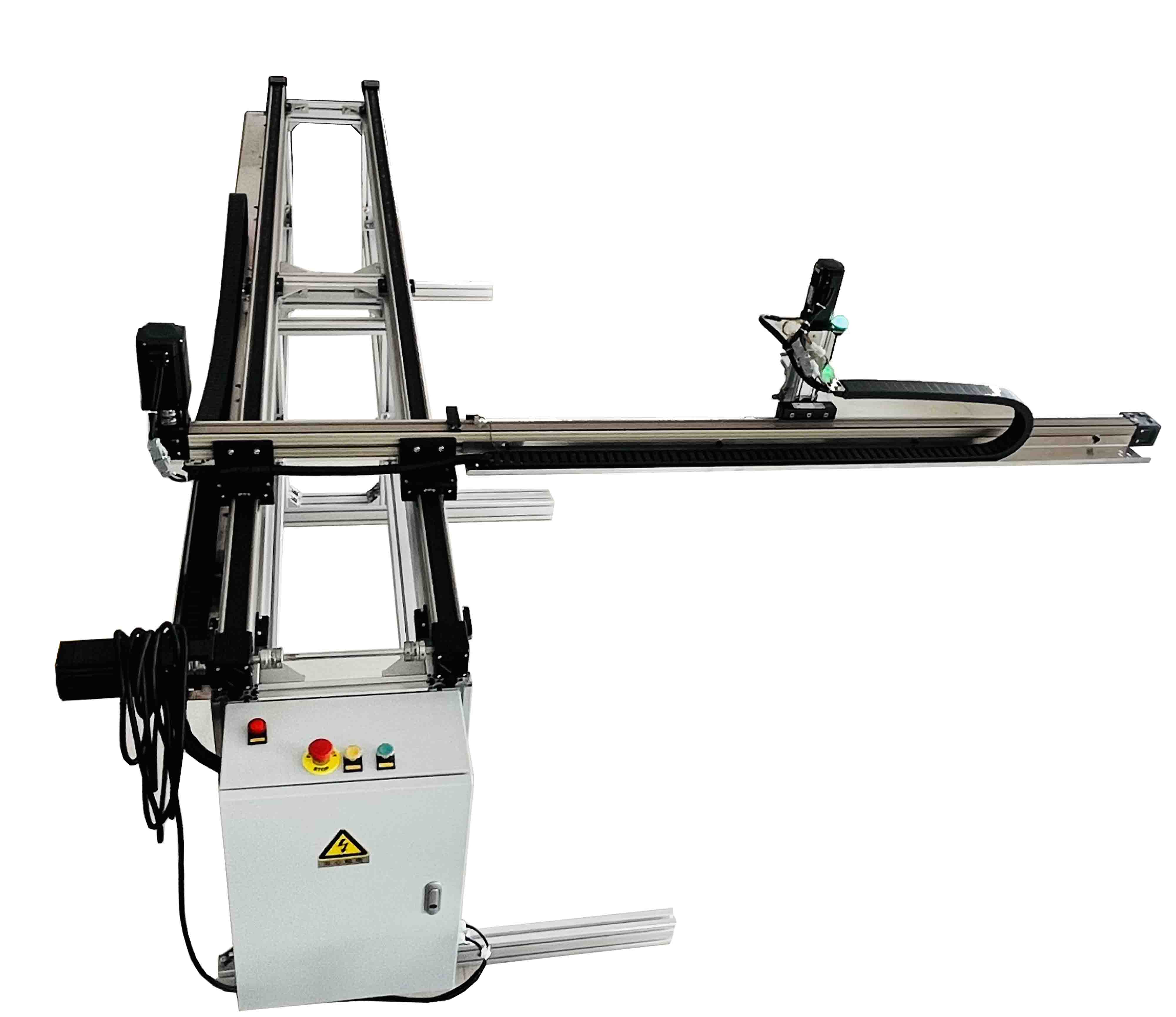

名称：全自动三轴点胶机

型号：AKS-SZ0912-SF

最高移动速度：300mm/S

重复定位精度：0.05mm

有效行程：X轴900mm，Y轴1200mm，Z轴200mm

额定功率：2300W

额定电压：220VAC

额定电流：10.9A

整机重量：105Kg

外型尺寸：1500x1270x1620（长x宽x高）

详细描述

1. 采用铝合金框架结构，清洁卫生方便安装，不生锈，无油漆。
2. 拖链式线槽布线，易于折装维修，达行业设计安全标准。
3. 三轴采用伺服电机驱动，闭环控制，确保精度。
4. 可编程控制系统，可手工输入，可U盘导入复杂图形，系统采用三轴差补算法确保图形精细准确。
5. 可外接热熔胶机等附加组件实现不同行业的工艺要求。
6. 配备有三轴行程传感器，有效防止超程撞机以确保设备安全。

注意事项

1. 高压设备，注意泄露，谨防触电。

2. 确认工作台平物件的安全高度后才可以启动设备。

3. 安装过程中要停电操作。

4. 安装辅助设备如枪、管时要泄压、排压后才可安装。

5. 定期清理粉尘，防止静电打火。

6. 定期检查是否有露液、漏电情况。

购买需知

1. 关于产品

我们接受用户特殊型号的定制服务，从生产到交付全程跟踪，确保设备安全稳定。

2.关于售后

我们将提供完善的售后服务，从制造，发货，安装，调试到交付用户投入使用一条龙服务。

3.关于发货

我们合作的快递公司有：申通，圆通，顺丰，以及物流公司。

更多详情请访问恒海精密机械官网：

http://www.hhaks.com

Detailed information

Brand: Henghai

Name: Automatic three-axis dispensing machine

Model: AKS-SZ0912-SF

Maximum moving speed: 300mm / S

Repeat positioning accuracy: 0.03mm

Effective stroke: X-axis 900mm, Y-axis 1200mm, z-axis 200mm

Rated power: 2300W

Rated voltage: 220VAC

Rated current: 10.9A

Overall weight: 105kg

Overall dimension: 1500x1270x1620 (L x W x H)

Detailed description

1. Aluminum alloy frame structure is adopted, which is clean, sanitary, convenient for installation, free of rust and paint.

2. Drag chain trunking wiring is easy to fold and repair, and meets the industrial design safety standards.

3. The three axes are driven by servo motor and closed-loop control to ensure accuracy.

4. Programmable control system, which can be input manually and import complex graphics into USB flash disk. The system adopts three-axis difference compensation algorithm to ensure fine and accurate graphics.

5. It can be externally connected with hot melt adhesive machine and other additional components to meet the process requirements of different industries.

6. Equipped with three-axis travel sensor to effectively prevent over range collision and ensure equipment safety.

Matters needing attention

1. High voltage equipment, pay attention to leakage and avoid electric shock.

2. The equipment can be started only after confirming the safe height of the flat object on the workbench.

3. Power off during installation.

4. When installing auxiliary equipment such as guns and pipes, the pressure shall be relieved and discharged before installation.

5. Clean the dust regularly to prevent static ignition.

6. Regularly check whether there is liquid leakage and electric leakage.

Purchase need to know

1. About products

      We accept the customized service of special models of users and track the whole process from production to delivery to ensure the safety and stability of the equipment.

2. About after sales

We will provide perfect after-sales service, from manufacturing, delivery, installation, commissioning to delivery to users.

3. About delivery

The express companies we cooperate with are: Shentong, Yuantong, Shunfeng, and logistics companies.

For more details, please visit the official website of Henghai precision machinery:

http://www.hhaks.com
